Input parameters: Three phase, AC400V±10% ,50HZ
Output parameters: DC 0~60V 0~1000A
Output mode: Common DC output
Cooling method: Air cooling
Power supply type: IGBT-based
Application Industry: Hydrogen Electrolysis Rectifier，such as wastewater treatment, Hydrogen Electrolysis, ballast water treatment, seawater or salt water sodium hypochlorite.

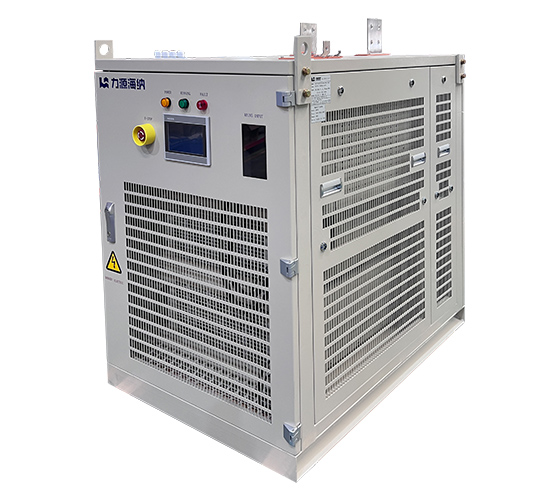

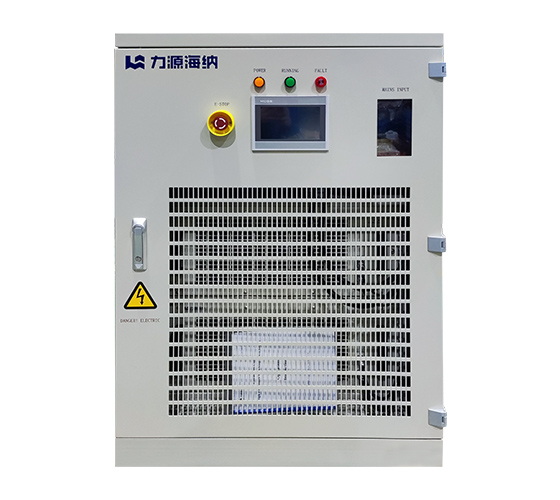

The Hydrogen Electrolysis Rectifier is a DC power supply device used to produce hydrogen by electrolyzing water. It converts AC power into DC power to provide the required electrical energy for the electrolyzer, thereby decomposing water molecules to produce hydrogen and oxygen. This type of equipment is essential for achieving green energy transformation and hydrogen economy.
*Photovoltaic, wind power, wave power, biomass power(green power) are connected to the power sourcerectifier and the electrolyzer to electrolyze hydrogen production
*Electrolytic hydrogen production by power source rectifer connected to conventional power grid and integrated with electrolyzer
*Inverter system between hydrogen energy storage and power grid
Characteristic Types |
Parameter Items |
Technical Requirements |
| Power Types | Power types | High-frequency Power Supply |
| Model and specifications | TDFB-1000A60V | |
| Cooling mode | Air-cooled | |
| Switch tube type | IGBT | |
| Input Characteristics | Rated Input Voltage | Three-phase, AC400V±10% ,50HZ |
| Rated Input Power | 67.2KVA | |
| Rated Input Current | AC 97.0A | |
| Input Power Factor | COSΦ≥0.95 | |
| Output Characteristics | Output Voltage | DC 0~60V |
| Output Current | DC 0～1000A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| According to accuracy | 1A，0.1V | |
| Rated Output efficiency | ≥90% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Noise | ≤50dB | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 470KG |
| External Dimension | Height*Width*Depth | H1445mm×W860mm×D1200mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
*The rectifier adopts a high-frequency rectifier circuit, with high inverter frequency, fast control speed and high power factor of the equipment;
*The incoming line of the unit is equipped with an EMI filter reactance device
* The rectifier adopts multiple modules in parallel, with a small single module, low requirements for electronic components and low failure rate;
*Full-bridge phase-shifted soft switching control mode
*Adopt advanced logic interlock control circuit
*The problem of magnetic bias is well eliminated
Perfect inspection process and strict quality management measures to ensure excellent quality delivery
