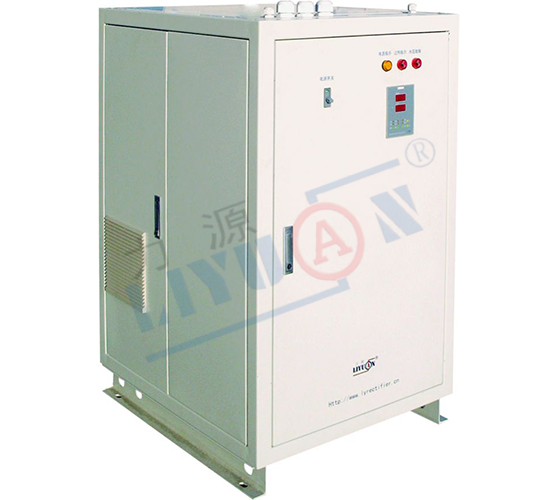

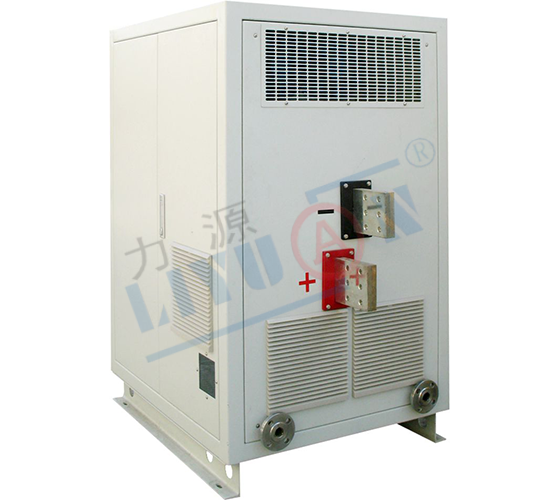

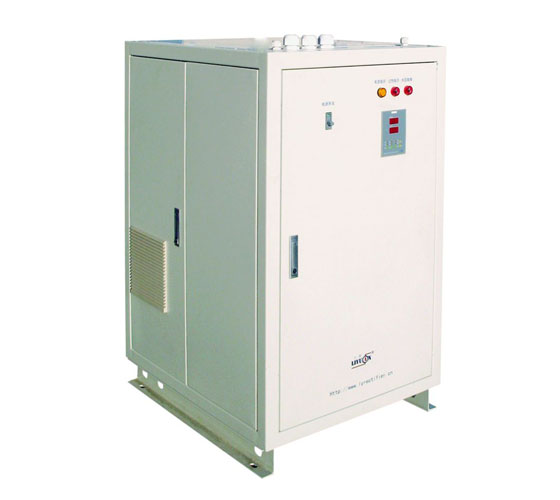

Input parameters: Three phase, AC480V±10% ,60HZ
Output parameters: DC 0~110V 0~830A
Output mode: Common DC output
Cooling method: Water cooling
Power supply type: Silicon Controlled Rectifier
Application Industry: Water treatment industry，such as wastewater treatment, seawater desalination, ballast water treatment, seawater or salt water sodium hypochlorite.
A Water Treatment Rectifier is a rectifier specifically designed for the water treatment industry, which converts alternating current (AC) into direct current (DC) to drive electrolysis, disinfection, and redox reactions in the water treatment process. This equipment is essential to improving water quality, removing pollutants, and ensuring water safety.
Water treatment equipment can be divided into several categories: sewage treatment equipment, Ed ultra pure water equipment, reverse osmosis equipment, deionized pure water equipment, pure water machines, and ultra pure water equipment
electrolysis, high-quality water supply for laboratories, and precious metal recycling places, etc.
*Adjustable: Power output adjustment range: 0~100% rated voltage continuously adjustable, 0~100% rated current continuously adjustable, voltage and current can be adjusted independently.
*Remote control: All power supplies can be displayed and controlled locally, or remotely in PLC display and control, all equipped with RS485 communication module, each power supply includes local and remote PLC voltage adjustment/current adjustment, local and remote PLC output voltage display/output current display, local and remote PLC start/reversing, local display of power supply operation status and feedback to PLC (running, forward, fault, local/remote), remote control can be controlled by 4~20MA analog signal.
*Soft start and stop: The power supply has soft start and soft stop functions, and the soft start time and soft stop time are set on the on-site cabinet.
*Reserved terminals: The power supply has interlocking function and reserved terminals, which are used to connect with the passive normally open contacts inside the cabinet of Party A. When the signal is disconnected, the power supply starts output statically.
Characteristic Types |
Parameter Items |
Technical Requirements |
| Power Types | Power types | Silicon Controlled Rectifier |
| Model and specifications | KGFB-830A/110V | |
| Cooling mode | Water-cooled | |
| Switch tube type | SCR | |
| Input Characteristics | Rated Input Voltage | Three-phase, AC480V±10% ,60HZ |
| Rated Input Power | 119KVA | |
| Rated Input Current | AC 144A | |
| Input Power Factor | COSΦ≥0.90 | |
| Output Characteristics | Output Voltage | DC 0~110V |
| Output Current | DC 0～830A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| According to accuracy | 1A，0.1V | |
| Rated Output efficiency | ≥85% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 800KG |
| External Dimension | Height*Width*Depth | H1665mm×W100mm×D1000mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
r DC power supply is widely used in water treatment, wastewater treatment,electrolytic treatment of wastewater and waste liquid, and precious metal recycling places.
| Application | Features | Model | Output Parameters |
| Water treatment | Polarity reversing | HIFA-50A/200V | ±200Vdc/50A |
| HIFA-60A/250V | ±250Vdc/60A | ||
| HIFA-80A/150V | ±150Vdc/80A | ||
| HIFA-130A/200V | ±200Vdc/130A | ||
| HIFA-150A/120V | ±120Vdc/150A | ||
| HIFA-150A/150V | ±150Vdc/150A | ||
| HIFA-150A/200V | ±200Vdc/150A | ||
| HIFA-150A/240V | ±240Vdc/150A | ||
| HIFA-180A/220V | ±220Vdc/180A | ||
| HIFA-180A/400V | ±400Vdc/180A | ||
| HIFA-200A/185V | ±185Vdc/200A | ||
| HIFA-200A/300V | ±300Vdc/200A | ||
| HIFA-200A/320V | ±320Vdc/200A | ||
| HIFA-250A/60V | ±60Vdc/250A | ||
| HIFA-300A/300V | ±300Vdc/300A | ||
| Regular | TBFB-1000A/24V | 24Vdc/1000A | |
| HIFB-1000A/30V | 30Vdc/1000A | ||
| TBFB-1200A/24V | 24Vdc/1200A | ||
| TBFB-1500A/24V | 24Vdc/1500A | ||
| HIFB-2000A/20V | 20Vdc/2000A | ||
| TDFB-440A/110V | 110Vdc/440A | ||
| TDFB-170A/110V | 110Vdc/170A | ||
| KES-8.7KA/655V | 655Vdc/8.7KA | ||
| KGFB-400A/750V | 750Vdc/400A | ||
| TDFB-500A/100V | 100Vdc/500A | ||
| TDFB-100A/110V | 110Vdc/100A | ||
| TDFB-850A/60V | 60Vdc/850A | ||
| TDSB-15KA/10V | 10Vdc/15KA | ||
| TDFB-600A/20V | 20Vdc/600A | ||
| HIFB-3000A/30V | 30Vdc/3000A | ||
| HIFB-170A/40V | 40Vdc/170A | ||
| HIFB-90A/75V | 75Vdc/90A | ||
| HIFB-120A/250V | 250Vdc/120A |
