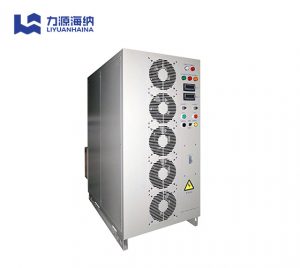

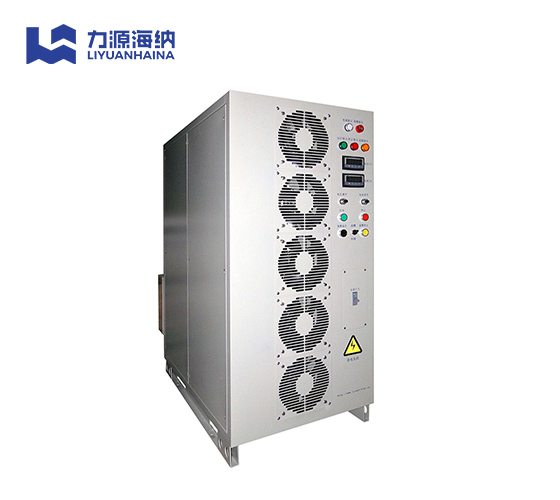

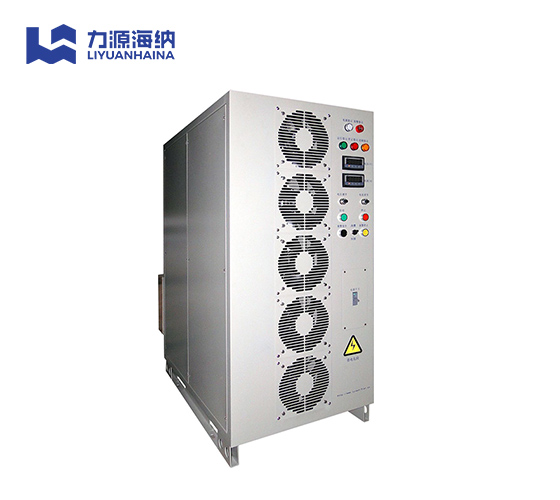

500V 150A Industrial Water Treatment Rectifier

Input parameters: Three phase, AC380V±10% ,50HZ

Output parameters: DC 0~500V 0~150A

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: IGBT-based power supply

Application Industry: Water treatment industry，such as wastewater treatment, seawater desalination, ballast water treatment, seawater or salt water sodium hypochlorite.

Consult online sale@lyrectifier.com

Product
Description

Products Description Technology Advantages Technical Parameters Product Features Optional models Inspection Process Quality Capability

Products Description

Water Treatment Rectifier is a rectifier specifically designed for the water treatment industry, which converts alternating current (AC) into direct current (DC) to drive electrolysis, disinfection, and redox reactions in the water treatment process. This equipment is essential to improving water quality, removing pollutants, and ensuring water safety.

Technology Advantages

Our DC power supply is widely used in water treatment, wastewater treatment,electrolytic treatment of wastewater and waste liquid, and precious metal recycling places.

Technical Parameters

Characteristic Types	Parameter Items	Technical Requirements
Power Types	Power types	High frequency power supply
	Model and specifications	HIFB-150A/500V
	Cooling mode	Air-cooled
	Switch tube type	IGBT
Input Characteristics	Rated Input Voltage	Three-phase, AC380V±10% ,50HZ
	Rated Input Power	353KW
	Rated Input Current	AC 127A
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC 0~500V
	Output Current	DC 0～150A
	Stabilized Current Precision	≤1%（Rated Current)
	According to accuracy	0.1A，0.1V
	Rated Output efficiency	≥95%
Environmental Conditions	Installation site	Indoor installations
	Altitude	≤2000 meters
	Ambient temperature	-20℃～40℃
	Relative humidity	≤90％
Control Mode	Operating mode	PLC, ADDA, Ethernet, RS485 and RS232
Weight	Net weight	About 500KG
External Dimension	HeightWidthDepth	H1800mm×W700mm×D900mm
Protection Characteristics	With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function

Product Features

*Adjustable: Power output adjustment range: 0~100% rated voltage continuously adjustable, 0~100% rated current continuously adjustable, voltage and current can be adjusted independently.
*Remote control: All power supplies can be displayed and controlled locally, or remotely in PLC display and control, all equipped with RS485 communication module, each power supply includes local and remote PLC voltage adjustment/current adjustment, local and remote PLC output voltage display/output current display, local and remote PLC start/reversing, local display of power supply operation status and feedback to PLC (running, forward, fault, local/remote), remote control can be controlled by 4~20MA analog signal.
*Soft start and stop: The power supply has soft start and soft stop functions, and the soft start time and soft stop time are set on the on-site cabinet.
*Reserved terminals: The power supply has interlocking function and reserved terminals, which are used to connect with the passive normally open contacts inside the cabinet of Party A. When the signal is disconnected, the power supply starts output statically.

Optional models
