Input parameters: Six phase, AC380V±10% ,50HZ
Output parameters: DC 0~655V 0~8.7KA
Output mode: Common DC output
Cooling method: Water cooling
Power supply type: Silicon controlled rectifier
Application Industry: Water treatment industry，such as hydrogen production from electrolytic water
The Hydrogen Electrolysis Rectifier is a DC power supply device used to produce hydrogen by electrolyzing water. It converts AC power into DC power to provide the required electrical energy for the electrolyzer, thereby decomposing water molecules to produce hydrogen and oxygen. This type of equipment is essential for achieving green energy transformation and hydrogen economy.
*Photovoltaic, wind power, wave power, biomass power(green power) are connected to the power sourcerectifier and the electrolyzer to electrolyze hydrogen production
*Electrolytic hydrogen production by power source rectifer connected to conventional power grid and integrated with electrolyzer
*Inverter system between hydrogen energy storage and power grid
*Select the core device thyristor with low on-state threshold voltage to reduce losses, improve efficiency and achieve stable overall performance;
*The number of parallel components of the bridge arm is controlled within a reasonable range,improve the current sharing coefficient of the rectifier bridge arm;
*Self-developed low-power current-sharing reactor to improve the efficiency
*Stable, safe, decades of technology, output voltage up to 1500V, current 100kA(or special customization);
*Multi-pulse modes such as 12, 24, and 36 can be used to reduce the impact of power supply system on power grid.

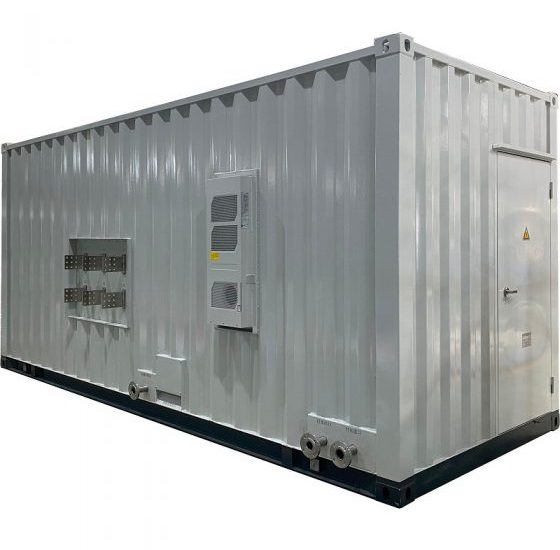

High-power Electrolytic Hydrogen Production Power Supply

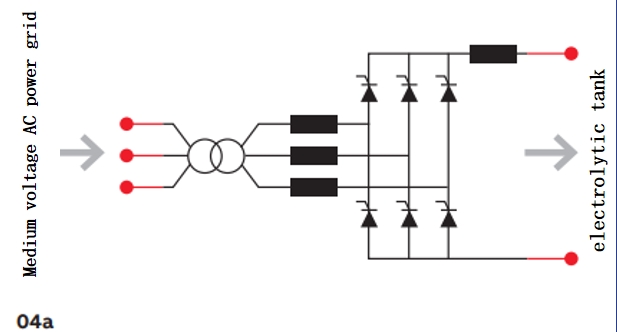

*6 pulse rectifier

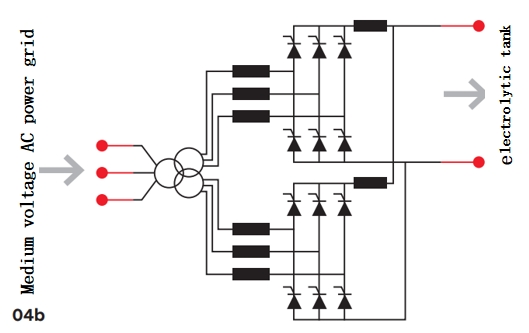

12 pulse rectifier
Perfect inspection process and strict quality management measures to ensure excellent quality delivery
Characteristic Types |
Parameter Items |
Technical Requirements |
| Power Types | Power types | High-frequency Power Supply |
| Model and specifications | KES-8.7KA/655V | |
| Cooling mode | Water-cooled | |
| Switch tube type | Silicon controlled rectifier | |
| Input Characteristics | Rated Input Voltage | Six-phase, AC380V±10% ,50HZ |
| Rated Input Power | AC 544.9V | |
| Rated Input Current | AC 3550A | |
| Input Power Factor | COSΦ≥0.95 | |
| Output Characteristics | Output Voltage | DC 0～655V |
| Output Current | DC 0～8700A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| According to accuracy | 1A，0.01V | |
| Rated Output efficiency | ≥91% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤1000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 8000KG |
| External Dimension | Height*Width*Depth | H6058mm×W2438mm×D2896mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
| Application | Model | Output Parameters |
| Electroplating, Electrolysis, Electrochemistry, Anodizing, Electrophoresis, Smelting, Electrocasting, Communication and other fields. | KES-11KA/220V | 220Vdc/11KA |
| KES-13.5KA/90V | 90Vdc/13.5KA | |
| KES-26KA/123V | 123Vdc/26KA | |
| KES-33KA/135V | 135Vdc/33KA | |
| KES-41KA/115V | 115Vdc/41KA | |
| KES-41KA/300V | 300Vdc/41KA | |
| KES-43KA/249V | 249Vdc/43KA | |
| Aluminum, magnesium, lead, zinc, copper, manganese, bismuth, nickel and other non-ferrous metal electrolysis; | KES-45KA/210V | 210Vdc/45KA |
| KES-40KA/70V | 70Vdc/40KA | |
| KES-50KA/45V | 45Vdc/50KA | |
| KES-33KA/245V | 245Vdc/33KA | |
| KES-42KA/120V | 120Vdc/42KA | |
| Salt water, potassium salt electrolytic caustic soda, potassium alkali, sodium; |
KES-35KA/110V | 110Vdc/35KA |
| KES-43KA/160V | 160Vdc/43KA | |
| KES-13.5KA/135V | 135Vdc/13.5KA | |
| KES-30KA/150V | 150Vdc/30KA | |
| Potassium chloride electrolysis to produce potassium chlorate, potassium perchlorate; | KES-15KA/120V | 120Vdc/15KA |
| KES-40KA/45V | 45Vdc/40KA | |
| KES-7000A/150V | 150Vdc/7000A | |
| KES-48KA/300V | 300Vdc/48KA | |
| KES-10KA/100V | 100Vdc/10KA | |
| Wire heating, silicon carbide heating, carbon tube furnace, graphitization furnace, melting furnace and other heating, electrolytic water hydrogen production and other large current fields. | KES-30KA/40V | 40Vdc/30KA |
| KGFB-400A/750V | 750Vdc/400A | |
| KGFB-350A/850V | 850Vdc/350A | |
| KGFA-3000A/26V | ±26Vdc/3000A | |
| KGFB-400A/380V | 380Vdc/400A | |
| KES-8.7KA/855V | 855Vdc/8.7KA | |
| KHS-7KA/150V | 150Vdc/7KA |
If you need other power electroplating rectifiers, we can custom design them according to customer requirements. Please contact us.
