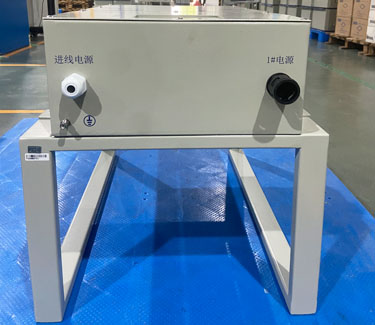

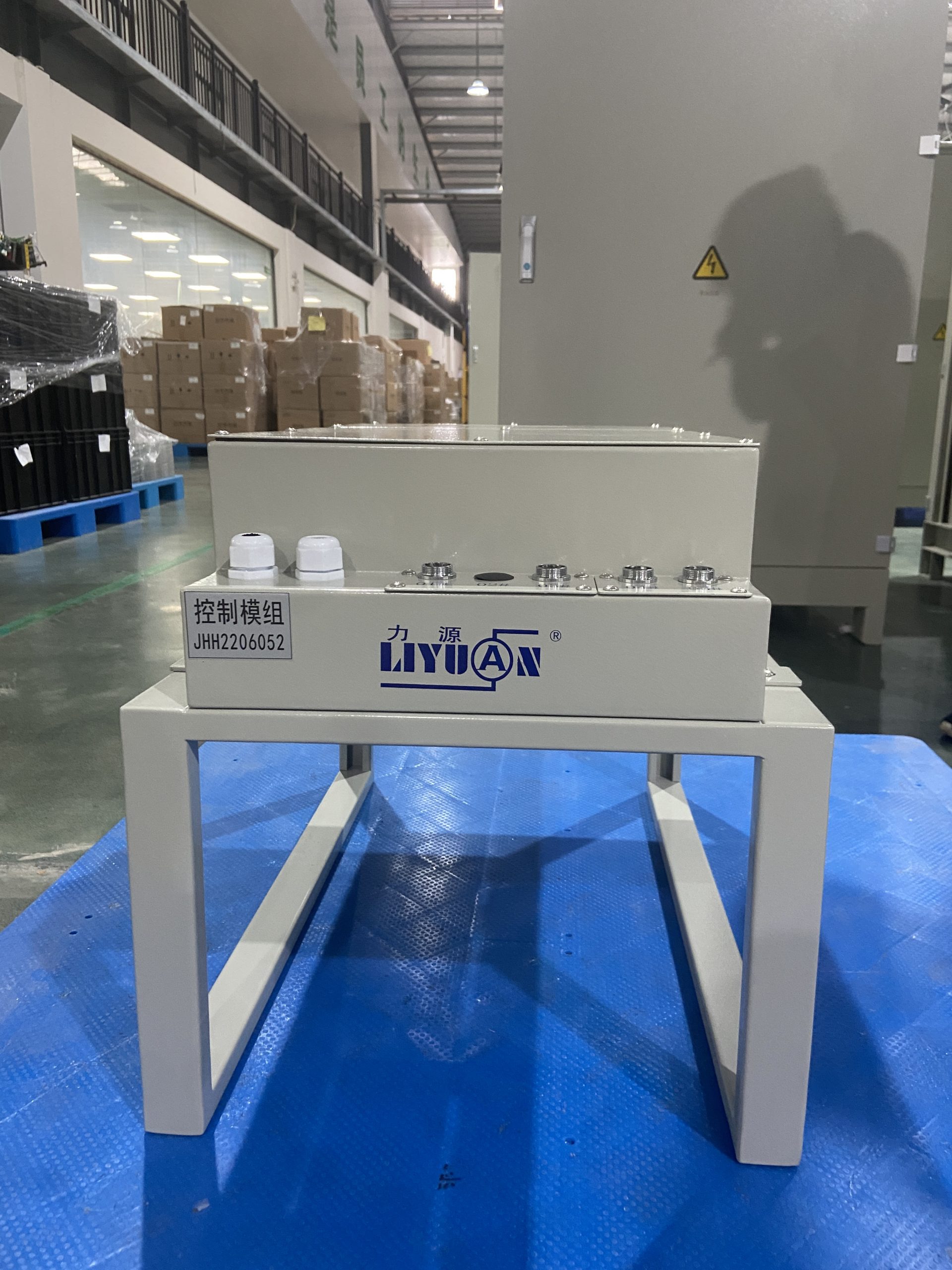

Input parameters: Three phase AC380V±10%, 50HZ
Output parameters: Positive: DC 6V 2*1000A Negative: DC 18V 2*3000A
Output mode: High speed positive and negative pulse
Cooling method: Water cooling
Power supply type: Pulsed power supply
Application Industry: PCB plating, rare metal plating, precision design, precious metal plating, electrolytic polishing, etc
In the PCB manufacturing process, electroless copper plating is an important step. It is widely used in the following two processes. One is plating onto bare laminate and the other is plating through hole, because under these two circumstances, electroplating cannot or can hardly be carried out. In the process of plating onto bare laminate, electroless copper plating plates a thin layer of copper on the bare substrate to make the substrate conductive for further electroplating. In the process of plating through hole, electroless copper plating is used to make the inner walls of the hole conductive to connect the printed circuits in different layers or the pins of the integrated chips.
When through hole used dc plating, the thicker the plating around the hole is, and there is no plating in the hole. The two ends are big and the middle is small. This dog bone phenomenon is prone to copper cracking, or no electricity at all.
Positive and negative pulse power supply can increase electroplating speed. Improve the uniformity of copper plating, deep hole plating uniformity; Reverse pulse electroplating can control the deposition rate of copper in the high current density area, so as to improve the thickness uniformity of surface copper and pore copper, and eliminate the “dog bone” phenomenon.
Characteristic Types |
Parameter Items |
Technical Requirements |
| Power Types | Power types | High speed positive and negative pulse |
| Model and specifications | HPNPS-2*Z1000A6VF3000A/18V-FT | |
| Cooling mode | Water-cooled | |
| Switch tube type | Pulsed power supply | |
| Input Characteristics | Rated Input Voltage | Three-phase,AC380V±10% ,50HZ |
| Rated Input Power | 15.6KVA | |
| Rated Input Current | AC 23.7A | |
| Input Power Factor | COSΦ≥0.95 | |
| Output Characteristics | Output Voltage | DC +6V/-18V |
| Output Current | DC 2*+1000A/-3000A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| Stabilized Voltage Precision | ≤1% | |
| According to accuracy | 1A，0.01V | |
| Rated Output efficiency | ≥90% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 150KG |
| Dimension | Height*Width*Depth | H800mm×W600mm×D500mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
