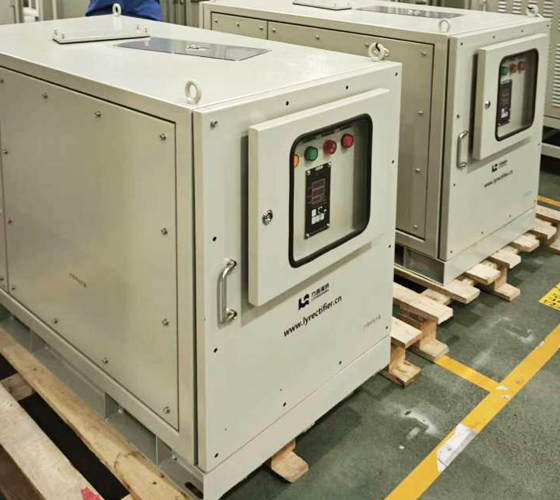

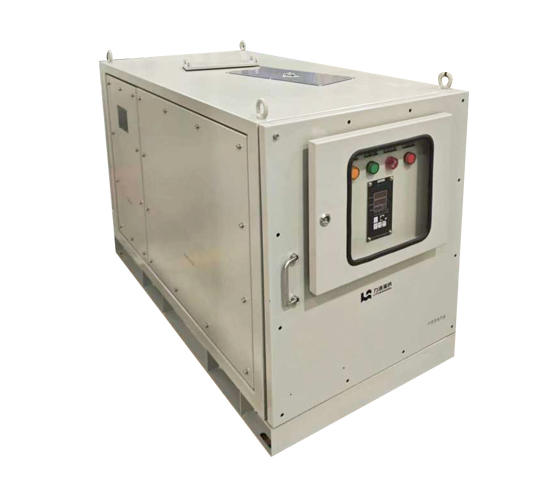

Input parameters: Three phase, AC380V±10% ,50HZ
Output parameters: DC 0~9V 0~8000A
Output mode: Common DC output

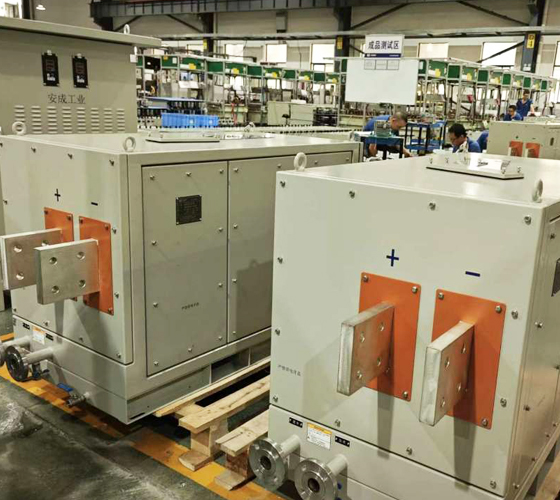

Cooling method: Water cooling
Power supply type: IGBT-based
Application Industry: Non-ferrous metal electrolysis, water electrolysis.

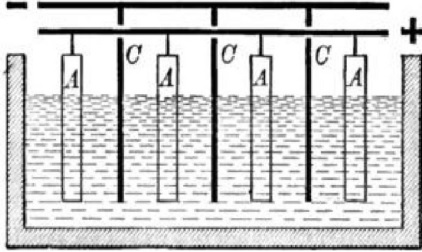

Electrolysis is widely used in metallurgical industries, such as the extraction of metals from ores or compounds (electrolytic metallurgy) or the purification of metals (electrolytic purification), and the deposition of metals from solutions (electroplating). Electrolysis is a very powerful means of facilitating redox reactions, and many redox reactions that are difficult to carry out can be achieved by electrolysis. For example, molten fluoride can be oxidized to monomeric fluorine on the anode, and molten lithium salt can be reduced to lithium metal on the cathode. The electrolysis industry plays an important role in the national economy. The smelting of many non-ferrous metals (such as sodium, potassium, magnesium, aluminum, etc.) and rare metals (such as zirconium, hafnium, etc.) and the refining of metals (such as copper, zinc, lead, etc.), the preparation of basic chemical products (such as hydrogen, oxygen, caustic soda, potassium chlorate, hydrogen peroxide, ethylenedicarbonitrile, etc.), as well as electroplating, electropolishing, anodic oxidation, etc., are all realized by electrolysis.
Characteristic Types |
Parameter Items |
Technical Requirements |
Power Types | Power types | High-frequency Power Supply |
Model and specifications | TBSB-8000A/9V | |
Cooling mode | Water-cooled | |
Switch tube type | IGBT | |
Input Characteristics | Rated Input Voltage | Three-phase, AC380V±10% ,50HZ |
Rated Input Power | 191KW | |
Rated Input Current | AC 291A | |
Input Power Factor | COSΦ≥0.95 | |
Output Characteristics | Output Voltage | DC 0~9V |
Output Current | DC 0~8000A | |
Stabilized Current Precision | ≤1%(Rated Current) | |
According to accuracy | 1A,0.01V | |
Rated Output efficiency | ≥91% | |
Environmental Conditions | Installation site | Indoor installations |
Altitude | ≤2000 meters | |
Ambient temperature | -20℃~40℃ | |
Relative humidity | ≤90% | |
Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
Weight | Net weight | About 300KG |
External Dimension | Height*Width*Depth | H1800mm×W940mm×D1100mm |
Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function |
Model | Input | Output | Dimension (mm)/L*W*H |
TBSB-400A/12V | Three Phase AC380V±10% 50HZ | 12V/400A | 500*343*183 |
TBSB-500A/12V | Three Phase AC380V±10% 50HZ | 12V/500A | 460*310*185 |
TBSB-600A/12V | Three Phase AC380V±10% 50HZ | 12V/600A | 500*343*183 |
TBSB-800A/5V | Three Phase AC380V±10% 50HZ | 5V/800A | 460*310*185 |
TBSB-800A/6V | Three Phase AC380V±10% 50HZ | 6V/800A | 460*310*185 |
TBSB-800A/12V | Three Phase AC380V±10% 50HZ | 12V/800A | 780*350*180 |
TBSB-1000A/12V | Three Phase AC380V±10% 50HZ | 12V/1000A | 644*330*192 |
TBSB-1000A/16V | Three Phase AC380V±10% 50HZ | 16V/1000A | 620*310*180 |
TBSB-1000A/25V | Three Phase AC380V±10% 50HZ | 25V/1000A | 700*352*185 |
TBSB-1000A/36V | Three Phase AC380V±10% 50HZ | 36V/1000A | 700*352*185 |
TBSB-1000A/38V | Three Phase AC380V±10% 50HZ | 38V/1000A | 780*365*187 |
TBSB-1200A/5V | Three Phase AC380V±10% 50HZ | 5V/1200A | 580*342*185 |
TBSB-2000A/5V | Three Phase AC380V±10% 50HZ | 5V/2000A | 780*310*180 |
TBSB-1800A/12V | Three Phase AC380V±10% 50HZ | 12V/1800A | 780*310*180 |
TBSB-2500A/12V | Three Phase AC380V±10% 50HZ | 12V/2500A | 1024*340*180 |
TBSB-3000A/12V | Three Phase AC380V±10% 50HZ | 12V/3000A | 700*352*185 |
TBSB-3000A/15V | Three Phase AC380V±10% 50HZ | 15V/3000A | 824*340*180 |
TBSB-4000A/10V | Three Phase AC380V±10% 60HZ | 10V/4000A | 700*362*185 |
TBSB-4000A/15V | Three Phase AC380V±10% 50HZ | 15V/4000A | 824*340*180 |
TBSB-5000A/7V | Three Phase AC380V±10% 50HZ | 7V/5000A | 700*362*185 |
TBSB-5000A/15V | Three Phase AC380V±10% 50HZ | 15V/5000A | 824*340*180 |
