Input parameters:Three phase AC380V±10%, 50HZ
Output parameters: DC 0~300V 0~48KA
Output mode: Twenty-four pulse wave output
Cooling method: Water cooling
Power supply type: Silicon controlled rectifier
Application Industry: Electrolytic copper industry
Electrolytic purification of copper: coarse copper is made into thick plate in advance as the anode, pure copper is made into thin sheets as the cathode, sulfuric acid (H2SO4) and copper sulfate (CuSO4) mixed liquid as the electrolyte. After the current is energized, copper dissolves into copper ions (Cu) from the anode and moves to the cathode, where electrons are acquired and pure copper (also known as electrolytic copper) is precipitated.
Impurities in coarse copper such as iron and zinc, which are more active than copper, dissolve with copper into ions (Zn and Fe). Because these ions are not easy to precipitate compared with copper ions, the precipitation of these ions on the cathode can be avoided as long as the potential difference is properly adjusted during electrolysis. Impurities less reactive than copper, such as gold and silver, are deposited at the bottom of the cell. The copper plates thus produced, called “electrolytic copper”, are of very high quality.
KES large – capacity rectifier is a kind of three-phase ac power conversion into voltage adjustable dc power device. Widely used in electroplating, electrolysis, electrochemistry, oxidation, electrophoresis, smelting, electrocasting, communication and other fields, mainly aluminum, magnesium, lead, zinc, copper, manganese, bismuth, nickel and other non-ferrous metal electrolysis; Salt water, potassium salt electrolytic caustic soda, potassium alkali, sodium; Potassium chloride electrolysis to produce potassium chlorate, potassium perchlorate; Steel wire heating, silicon carbide heating, carbon tube furnace, graphitization furnace, melting furnace and other heating; Electrolysis of water to produce hydrogen and other high-current fields.
Characteristic Types |
Parameter Items |
Technical Requirements |
Power Types | Power types | High-frequency Power Supply |

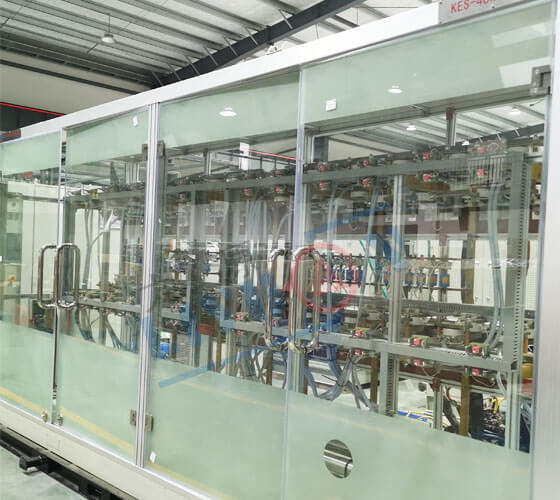

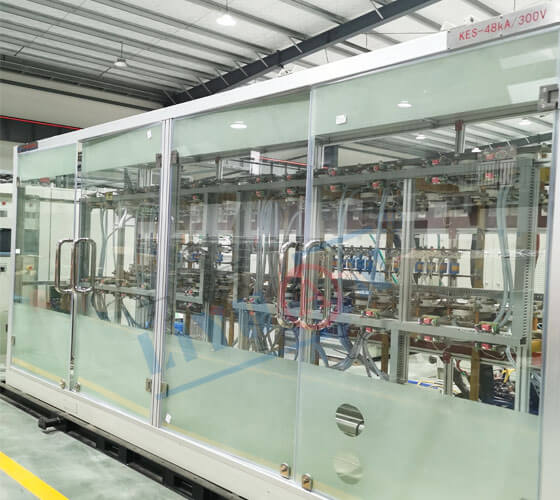

Model and specifications | KES-48KA/300V | |
Cooling mode | Water-cooled | |
Switch tube type | Silicon controlled rectifier | |
Input Characteristics | Rated Input Voltage | Three phase, AC380V±10% ,50HZ |
Rated Input Power | AC 307.7V | |
Rated Input Current | AC 3468A | |
Input Power Factor | COSΦ≥0.95 | |
Output Characteristics | Output Voltage | DC 0~300V |
Output Current | DC 0~48KA | |
Stabilized Current Precision | ≤1%(Rated Current) | |
According to accuracy | 1A,0.01V | |
Rated Output efficiency | ≥91% | |
Environmental Conditions | Installation site | Indoor installations |
Altitude | ≤1000 meters | |
Ambient temperature | -20℃~40℃ | |
Relative humidity | ≤90% | |
Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
Weight | Net weight | About 8000KG |
External Dimension | Height*Width*Depth | H4850mm×W1720mm×D2500mm |
Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function |
Application | Model | Output Parameters |
Electroplating, Electrolysis, Electrochemistry, Anodizing, Electrophoresis, Smelting, Electrocasting, Communication and other fields. | KES-11KA/220V | 220Vdc/11KA |
KES-13.5KA/90V | 90Vdc/13.5KA | |
KES-26KA/123V | 123Vdc/26KA | |
KES-33KA/135V | 135Vdc/33KA | |
KES-41KA/115V | 115Vdc/41KA | |
KES-41KA/300V | 300Vdc/41KA | |
KES-43KA/249V | 249Vdc/43KA | |
Aluminum, magnesium, lead, zinc, copper, manganese, bismuth, nickel and other non-ferrous metal electrolysis; | KES-45KA/210V | 210Vdc/45KA |
KES-40KA/70V | 70Vdc/40KA | |
KES-50KA/45V | 45Vdc/50KA | |
KES-33KA/245V | 245Vdc/33KA | |
KES-42KA/120V | 120Vdc/42KA | |
Salt water, potassium salt electrolytic caustic soda, potassium alkali, sodium; |
KES-35KA/110V | 110Vdc/35KA |
KES-43KA/160V | 160Vdc/43KA | |
KES-13.5KA/135V | 135Vdc/13.5KA | |
KES-30KA/150V | 150Vdc/30KA | |
Potassium chloride electrolysis to produce potassium chlorate, potassium perchlorate; | KES-15KA/120V | 120Vdc/15KA |
KES-40KA/45V | 45Vdc/40KA | |
KES-7000A/150V | 150Vdc/7000A | |
KES-48KA/300V | 300Vdc/48KA | |
KES-10KA/100V | 100Vdc/10KA | |
Wire heating, silicon carbide heating, carbon tube furnace, graphitization furnace, melting furnace and other heating, electrolytic water hydrogen production and other large current fields. | KES-30KA/40V | 40Vdc/30KA |
KGFB-400A/750V | 750Vdc/400A | |
KGFB-350A/850V | 850Vdc/350A | |
KGFA-3000A/26V | ±26Vdc/3000A | |
KGFB-400A/380V | 380Vdc/400A | |
KES-8.7KA/855V | 855Vdc/8.7KA | |
KHS-7KA/150V | 150Vdc/7KA |
