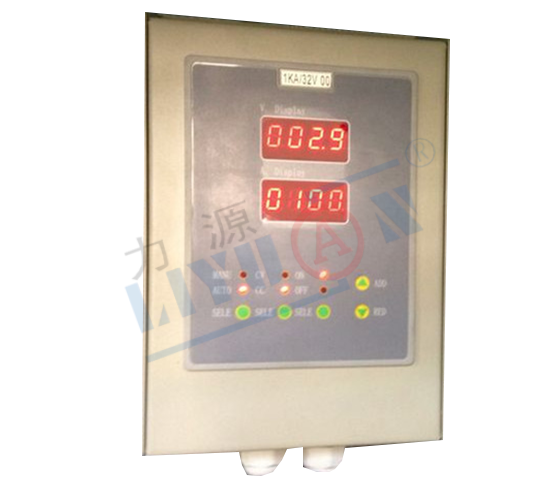

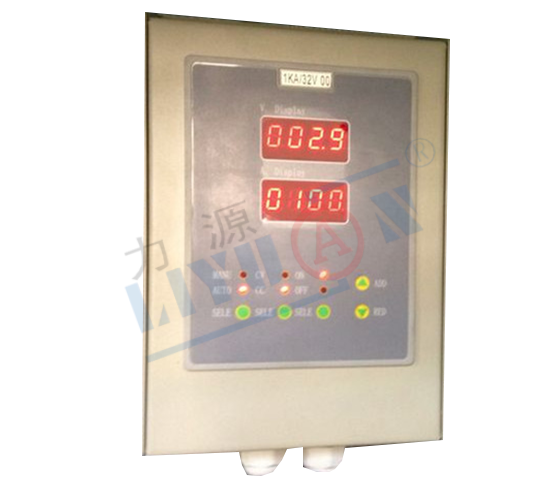

RS485 Double-Meter controller

Connected with computer controlled card of rectifier,adopt RS485 network communication system ,which utilizes two-core twisted pair shielded wire to perform communication, all digital network transmission is high in control accuracy, of zero-decrement, strong in interference rejection, far in communication distance.

The controller has two groups of communication ports, A1, B1 and A2, B2. A1, B1 are near communication ports and connected to the rectifier, while A2, B2 are remote communication ports and connected to the upper machine. RS485 double-chart controller is mainly used for site control of automatic line or RS485 control of a single rectifier.

The controller has the following functions:

(1)Display and set function of voltage and electric current.

(2)Option functions of on/off, voltage stabilization /current stabilization.

(3)Option function of long-distance and local control.

(4)Initialization function of lower computer.

(5)Fault inquiry function and more.

(1)Ambient temperature: -10℃ to 45℃

(2)Height above sea level: ≤1500 m

(3)Relative humidity: ≤85%

(4)Free from conductive dust, explosive articles, corrosive gas

(5)Free from strong vibration

(6)Indoors installment

V:Voltage display    A:Current display Manu:Manual     CC: Control current (current-stabilized)  CV: Control voltage (voltage-stabilized)  Sele:Select Sub:Subtract

(1)RS485 double-meter controller overall dimension：

(2)Multiple RS485 double-chart controllers are installed on the collective control cabinet, with the opening sizes below:

(3)A single RS485 double-chart controller is installed in an installation box with active accessories, with the sizes below:
