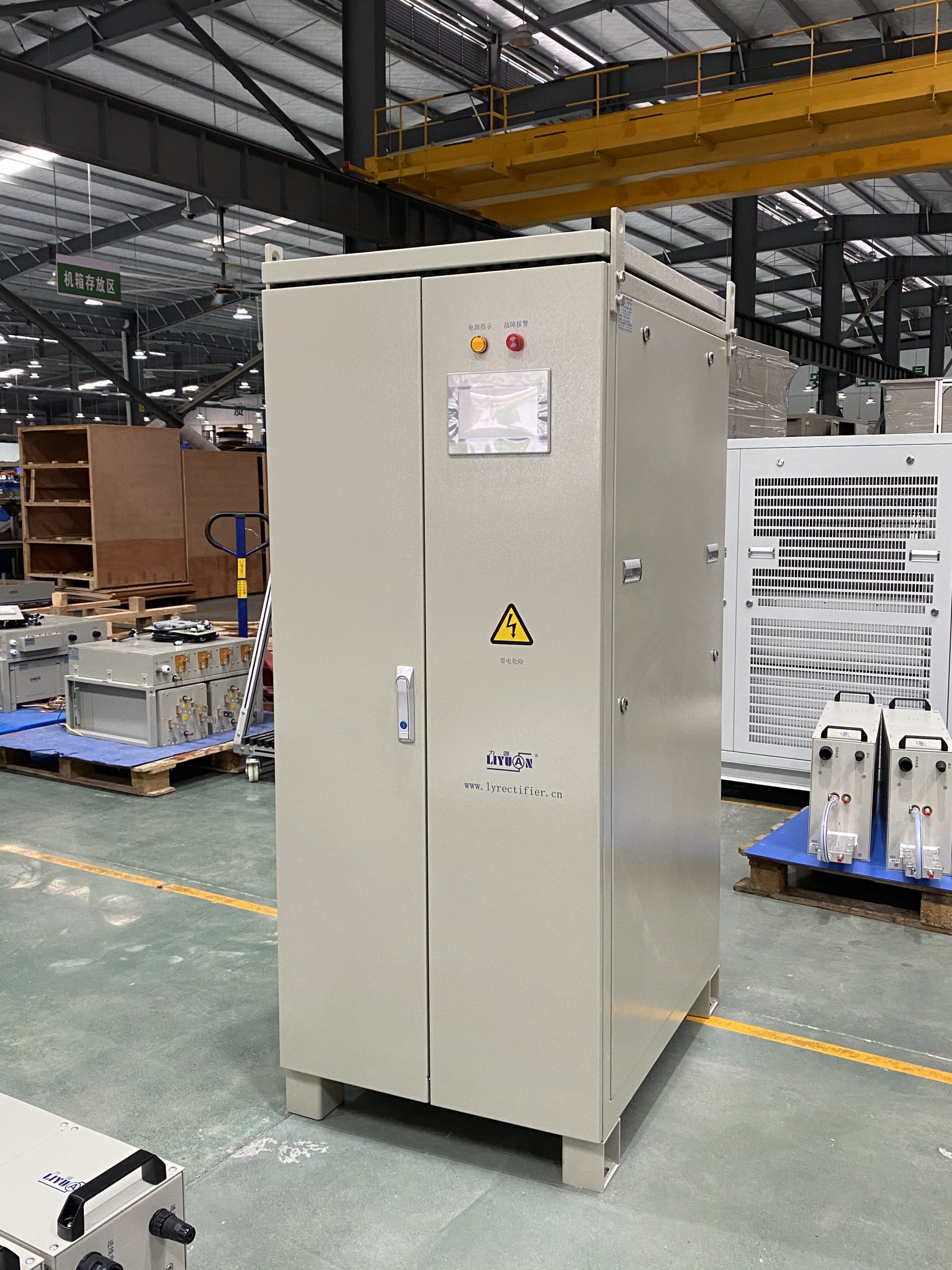

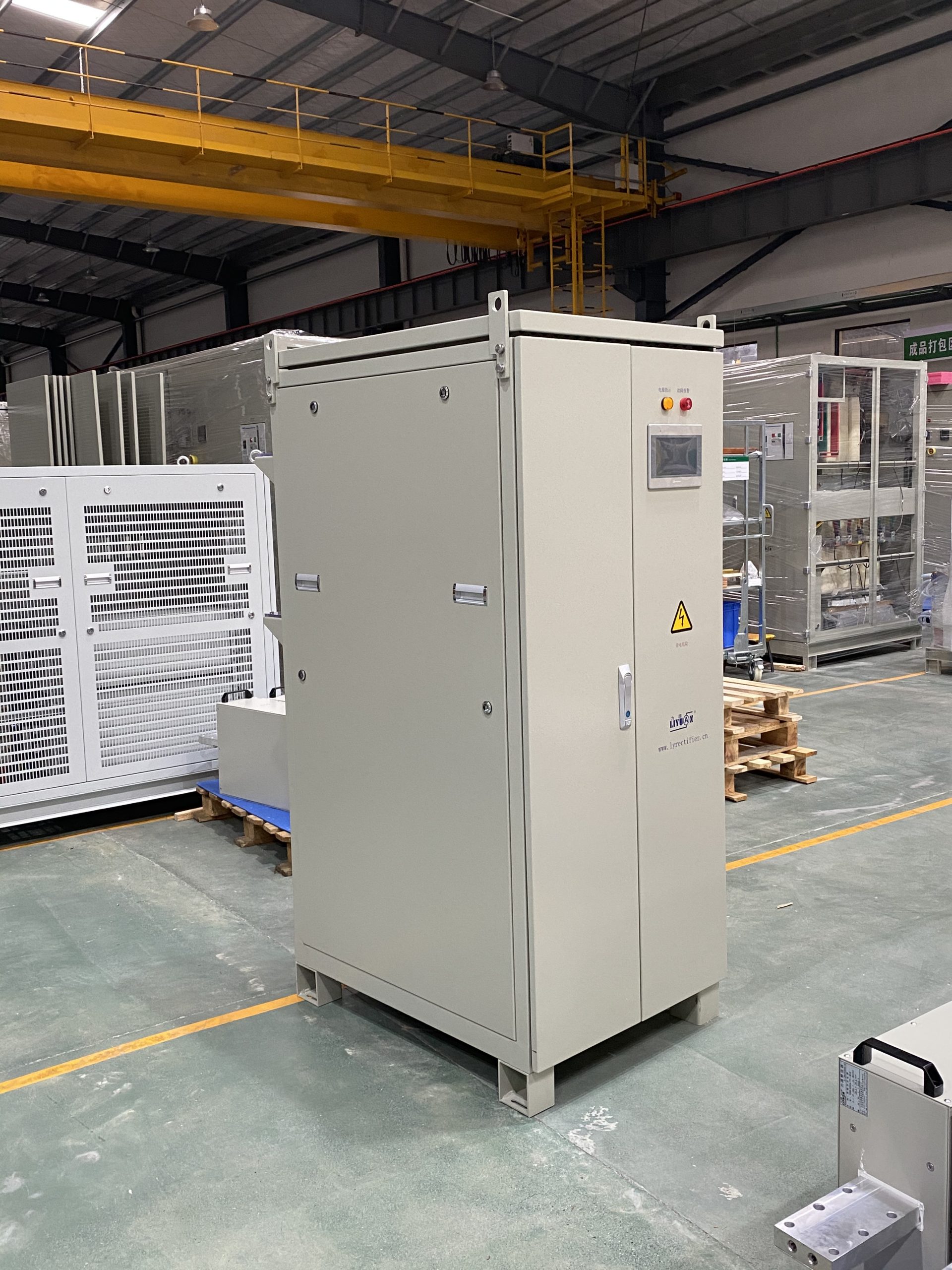

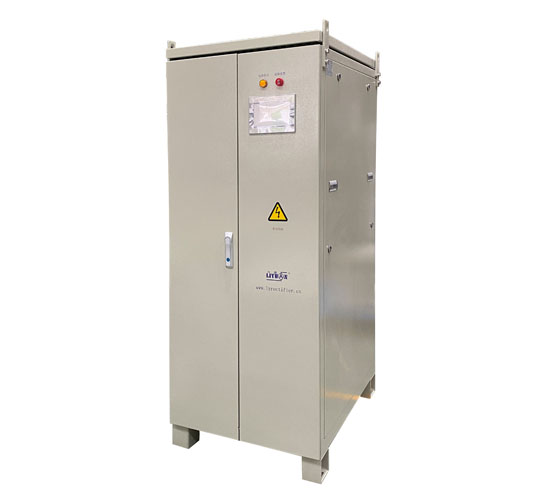

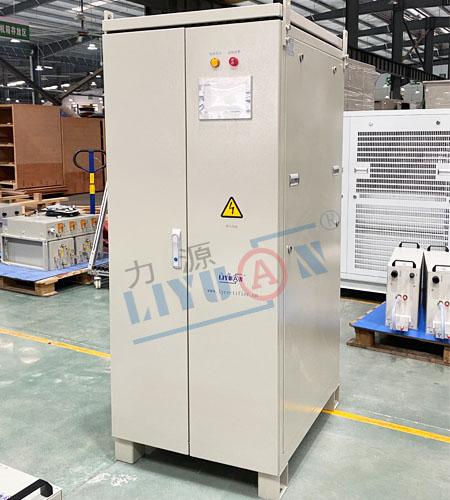

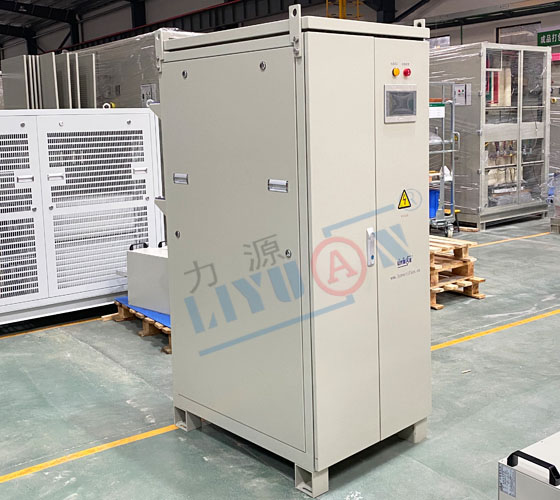

Input parameters: Three phase AC380V±10%, 50HZ
Output parameters: Dual output +10V 1000A / -30V 3000A
Output mode: Reverse pulse DC power supply
Cooling method: Water cooling
Power supply type: Pulsed power supply
Application: PCB Through hole plating, such as deep hole and blind hole electroplating process, which is the first choice for 5G board.
PCB plating may be defined as one or both of the following: Via plating – the process of filling a drilled hole with copper to provide a path for current from a surface of the board to an inner layer, between two inner layers or from one surface to the other. These plated through holes (PTHs) are better known as vias.
In the PCB manufacturing process, electroless copper plating is an important step. It is widely used in the following two processes. One is plating onto bare laminate and the other is plating through hole, because under these two circumstances, electroplating cannot or can hardly be carried out. In the process of plating onto bare laminate, electroless copper plating plates a thin layer of copper on the bare substrate to make the substrate conductive for further electroplating. In the process of plating through hole, electroless copper plating is used to make the inner walls of the hole conductive to connect the printed circuits in different layers or the pins of the integrated chips.
Positive and negative pulse power supply can increase electroplating speed. Improve the uniformity of copper plating, deep hole plating uniformity; Reverse pulse electroplating can control the deposition rate of copper in the high current density area, so as to improve the thickness uniformity of surface copper and pore copper, and eliminate the “dog bone” phenomenon.

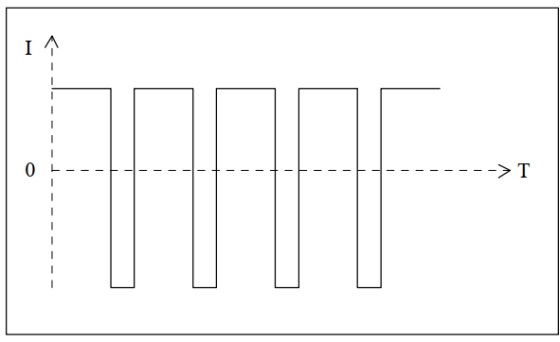

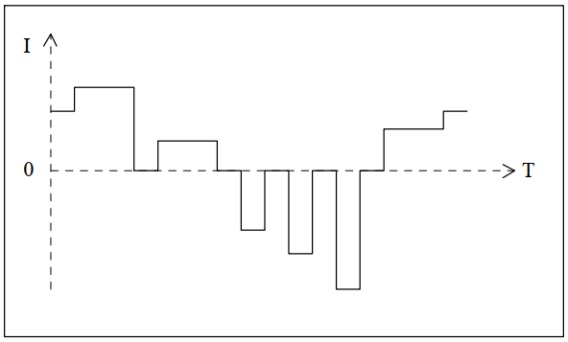

Analog waveform of normal positive and negative pulse output

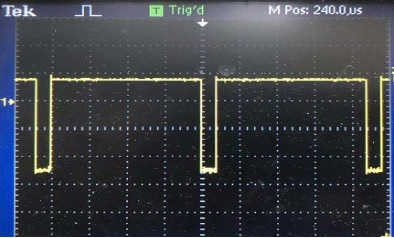

Normal positive and negative pulse output actual waveform diagram
Combined pulse output analog waveform diagram

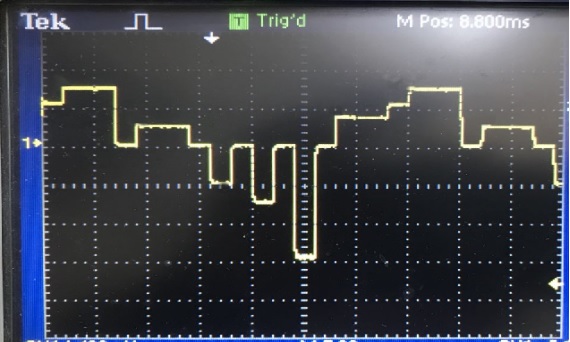

Combined pulse output actual waveform diagram
Characteristic Types |
Parameter Items |
Technical Requirements |
| Power Types | Power types | High-frequency Power Supply |
| Model and specifications | HPNPS-2*Z1000AF3000A/10V | |
| Cooling mode | Water-cooled | |
| Switch tube type | IGBT | |
| Input Characteristics | Rated Input Voltage | Three-phase,AC380V±10% ,50HZ |
| Rated Input Power | 26KVA | |
| Rated Input Current | 39.5A | |
| Input Power Factor | COSΦ≥0.90 | |
| Output Characteristics | Output Voltage | DC +10V/-30V |
| Output Current | DC +1000A/-3000A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| Stabilized Voltage Precision | ≤1% | |
| According to accuracy | 1A，0.1V | |
| Rated Output efficiency | ≥90% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 400KG |

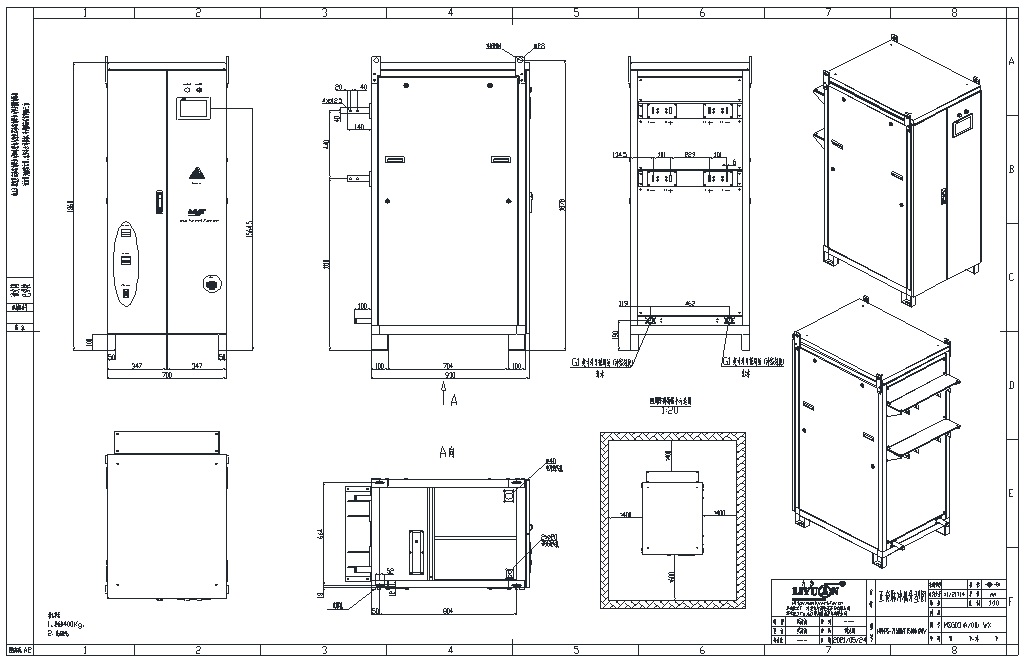

| External Dimension | Height*Width*Depth | H860mm×W700mm×D930mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
| Model | Input | Output | Dimension (H*W*L)/mm |
| HPNPS-2*Z100F300A/6V | Three phaseAC380V±10% 50HZ | .+6V/-18V +100A/-300A | 980*500*700 |
| HPNPF-2*Z150F600A/6V | Three phaseAC380V±10% 50HZ | `+6V/-18V +150A/-600A | 1900*750*800 |
| HPNPF-Z200A/6VF600A/18V | Three phaseAC380V±10% 50HZ | ·+6V/-18V +200A/-600A | 1050*580*680 |
| HPNPF-2*Z200AF600A/6V | Three phaseAC380V±10% 50HZ | ·+6V/-18V +200A/-600A | 1050*580*680 |
| HPNPF-Z250AF250A/30V | Three phaseAC380V±10% 50HZ | ·+30V/-30V +250A/-250A | 1050*580*680 |
| HPNPS-2*Z300AF900A/6V | Three phaseAC380V±10% 50HZ | `+6V/-18V +300A/-900A | 900*500*930 |
| HPNPS-2*Z400AF1200A/6V | Three phaseAC380V±10% 50HZ | ·+6V/-18V +400A/-1200A | 900*500*930 |
| HPNPS-2*Z600AF1800A/6V | Three phaseAC380V±10% 50HZ | ·+6V/-18V +600A/-1800A | 1000*600*1200 |
| HPNPF-2*Z800AF2400A/6V+P | Three phaseAC380V±10% 50HZ | `+6V/-18V +800A/-2400A | 1800*750*800 |
| HPNPS-2*Z900AF2700A/6V | Three phaseAC380V±10% 50HZ | ·+6V/-18V +900A/-2700A | 1762*750*900 |
| HPNPS-2*Z1000AF3000A/6V | Three phaseAC380V±10% 50HZ | `+6V/-18V +1000A/-3000A | 1600*700*840 |
| HPNPF-D2-Z1000A6V/F3000A/12V | Three phaseAC380V±10% 50HZ | `+6V/-12V +1000A/-3000A | 1720*750*800 |
| HPNPF-2*Z1200AF3600A/6V | Three phaseAC380V±10% 50HZ | `+6V/-18V +1200A/-3600A | 1720*750*800 |
| ※Can be customized according to requirements※ | |||
*Synchronous rectification, efficiency can exceed 94%;
*RS485 communication plus digital deviation calibration system, optional WIFI function;
*Chassis sealing design, air duct isolation and sealing, circuit board adopts unique dip coating process to improve corrosion resistance;

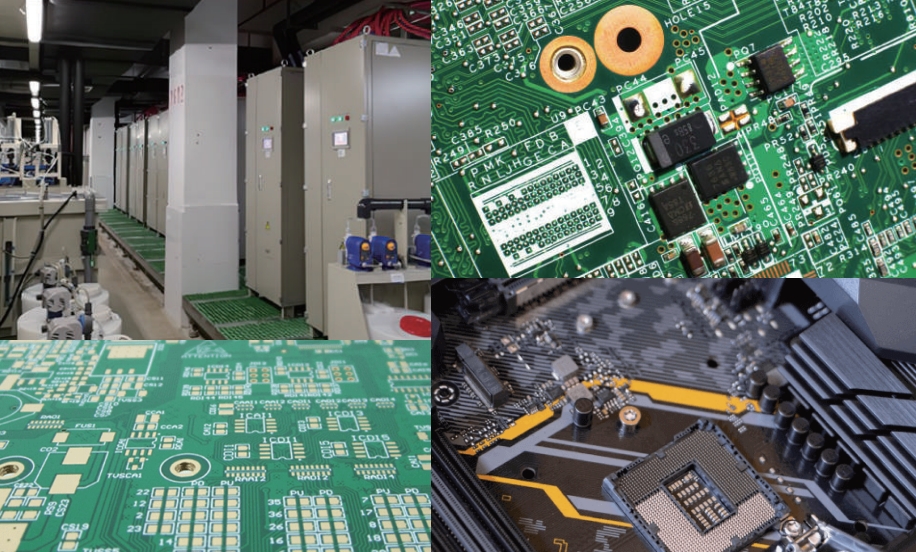

Liyuan Haina’s main products in the power supply field of the PCB industry include: TB series synchronous rectification
high-frequency switching power supply, TBFBG series high-precision MSAP dedicated power supply (AC-DC-DC mode),
high-speed positive and negative pulse power supply (independent split mode, multiple Any combination of outputs), TB
series dual output, four output, all-in-one computer, TB tablet computer series; distributed sub-module DC pulse power
supply series; dot matrix intensive small power supply series; multiple communication control methods optional; air cooling
Water cooling is optional; the overall performance is stable, energy-saving effciency is high, and the size is small. It has a
unique installation mode that is highly optimized for the same equipment; it has the comprehensive characteristics of
improving the uniformity and depth of electroplating and optimizing process characteristics.
Perfect inspection process and strict quality management measures to ensure excellent quality delivery
Liyuan rectifier, taking the lead in IGBT rectifier and SCR rectifier in China.
